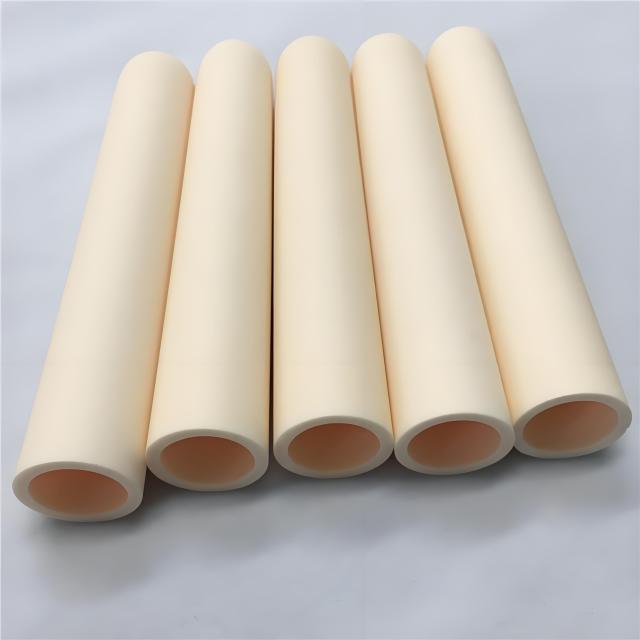

99% Alumina Ceramic Tube
Alumina ceramics are known for their high hardness, wear resistance, corrosion resistance, good electrical insulation and high temperature stability. According to the different alumina content, it can be divided into different grades, such as 95 porcelain, 99 porcelain, etc., among which 99 porcelain refers to ceramic materials with an alumina content of 99%. As the alumina content increases, its mechanical strength and electrical insulation properties will also increase accordingly.
※ High abrasion-resistant
※ Excellent oxide and corrosion resistance
※ Low thermal expansion
※ High bending strength and tensile strength
※ High hardness and stiffness
※ Electrical insulation
The alumina ceramic tube 99% Al2O3 is a high-performance material created for requiring industrial applications. It consists of 99% aluminum oxide, guaranteeing exceptional pureness. The continuing to be 1% consists of trace elements that enhance structural stability. This composition gives superb resistance to heat, wear, and chemical corrosion.
The tube appears white or cream color. It keeps a smooth surface coating, appropriate for accuracy atmospheres. The density standards 3.9 g/cm TWO, adding to its longevity. It has high hardness, ranking close to 9 on the Mohs scale. This makes it optimal for rough problems.
Thermal residential or commercial properties are an essential advantage. The tube endures temperature levels approximately 1650 ° C without warping. It resists thermal shock, managing rapid temperature changes. This stability matches applications like heater linings or liquified steel handling. Electrical insulation is another stamina. The product blocks high-voltage currents, making it safe for electronics or power systems.
Mechanical stamina is extraordinary. The compressive stamina goes beyond 2200 MPa, much surpassing lots of metals. Flexural toughness remains above 300 MPa, protecting against cracks under stress and anxiety. Put on resistance expands television’s lifespan in high-friction settings. It withstands acids, alkalis, and solvents, making sure reliability in harsh chemical atmospheres.
Surface area coating alternatives consist of as-fired or refined. Resistances are tight, with diameters ranging from 1 mm to 200 mm. Lengths can be customized as much as 1000 mm. Television’s dimensional precision meets strict commercial criteria.
Applications cover multiple markets. It operates in semiconductor production as safety sleeves for thermocouples. Industrial heaters use it for insulation cores. Laboratories rely on it for sample holders in high-temperature testing. Clinical tools integrates it for non-reactive liquid transfer.
Personalization is readily available for details requirements. Wall surface thickness, inner/outer diameters, and surface therapies can be adjusted. The material adheres to RoHS and ISO standards. It is manufactured utilizing sophisticated sintering methods to make sure harmony.
This alumina ceramic tube combines dependability with versatility. It attends to obstacles in extreme settings. Its residential properties make it a recommended choice for engineers focusing on efficiency and long life.
