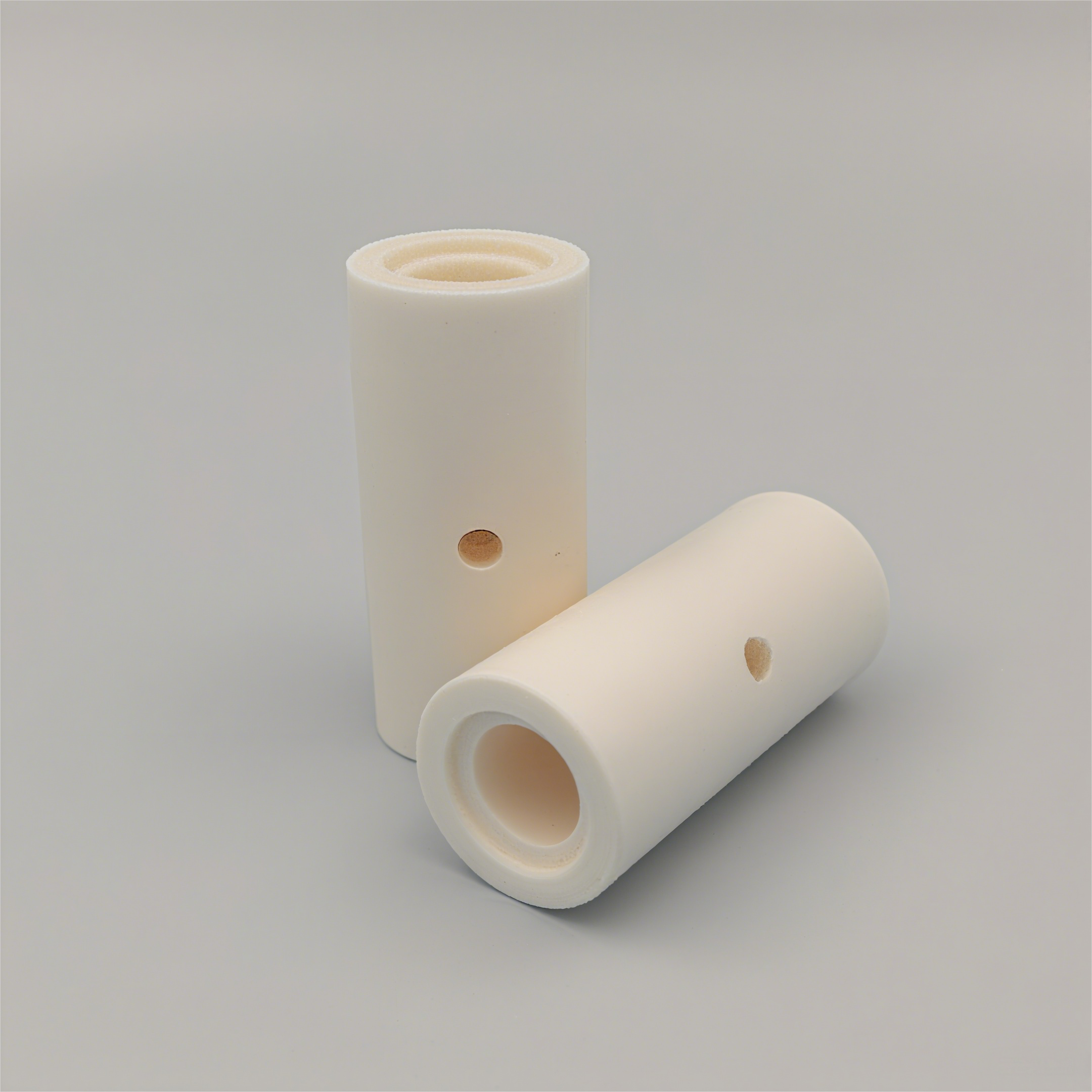

99.7% Alumina Ceramic Bushings

No.99.7% Alumina Ceramic Bushings

99.7% Alumina Ceramic Bushings made of high-purity alumina material and processed through high-temperature sintering, offering high hardness, mechanical strength, temperature stability, thermal conductivity, insulation, and corrosion resistance. we provides top-quality Al2O3 Ceramic Bushing at competitive prices, offering specialized and customized services to meet needs.

Description

99.7% Alumina Ceramic Bushings exhibit excellent properties, including outstanding wear resistance, high-temperature stability, chemical inertness, electrical insulation, and dimensional stability. As a result, they are highly suitable for use in various demanding environments and industries. They are often employed to protect and support the internal surfaces of metal pipes or equipment.

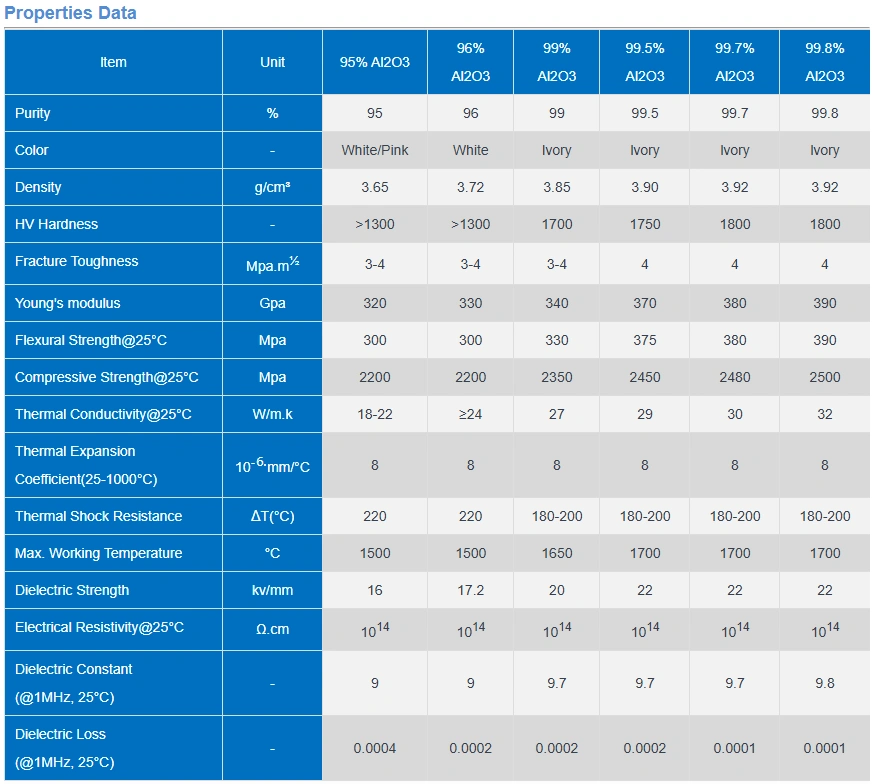

Alumina (Al2O3) Ceramic Bushing Specifications

Composition	UNIT	Alumina 95	Alumina 99	Alumina 99.7%
AL2O3 Content	%	95	99	99.7
Color		White	Ivory	Ivory
Tensile Strength	Kpsi	32	38	36
Flexural Strength	Kpsi	52	55	54
Compressive Strength	Kpsi	300	377	350
Density	g/cc	3.70	3.90	3.92
Hardness	HV, GPa	13.8	17.2	18
Thermal Conductivity	W/(m K)	25	30	30
Coefficient of Thermal Expansion	In / In°C (x10^-6)	7.7	7.8	7.8
Working Temperature	°C	1500	1650	1750
Dielectric Constant		9.5	9.7	9.8
Volume Resistivity (25°C)	Ohm-cm	>10¹⁴	>10¹⁴	>10¹⁴

*Customized services can be available according to specific drawings.

Alumina (Al2O3) Ceramic Bushing Applications

Used in electrical insulation components, such as insulators, connectors, and terminal blocks.
Used in mechanical components like bearings, shafts, and sleeves.
Used in chemical processing equipment, such as pumps, valves, and seals.
Used in thermal management applications, including heat sinks, thermocouple protection tubes, and furnace components.
Used in medical devices, laboratory equipment, and biotechnology applications.
Used in automotive components, such as engine parts, turbochargers, and braking systems.
Used in aerospace applications, such as jet engines, rocket thrusters, and missile guidance systems.
