Name: Si3N4 Ceramic Tubes
Brand: Changsha Ceram New Material Co. Ltd.-Supplier of Advanced Ceramic, Dia
SKU: Si3N4 Ceramic Tubes
Rating: 5 (1 reviews)

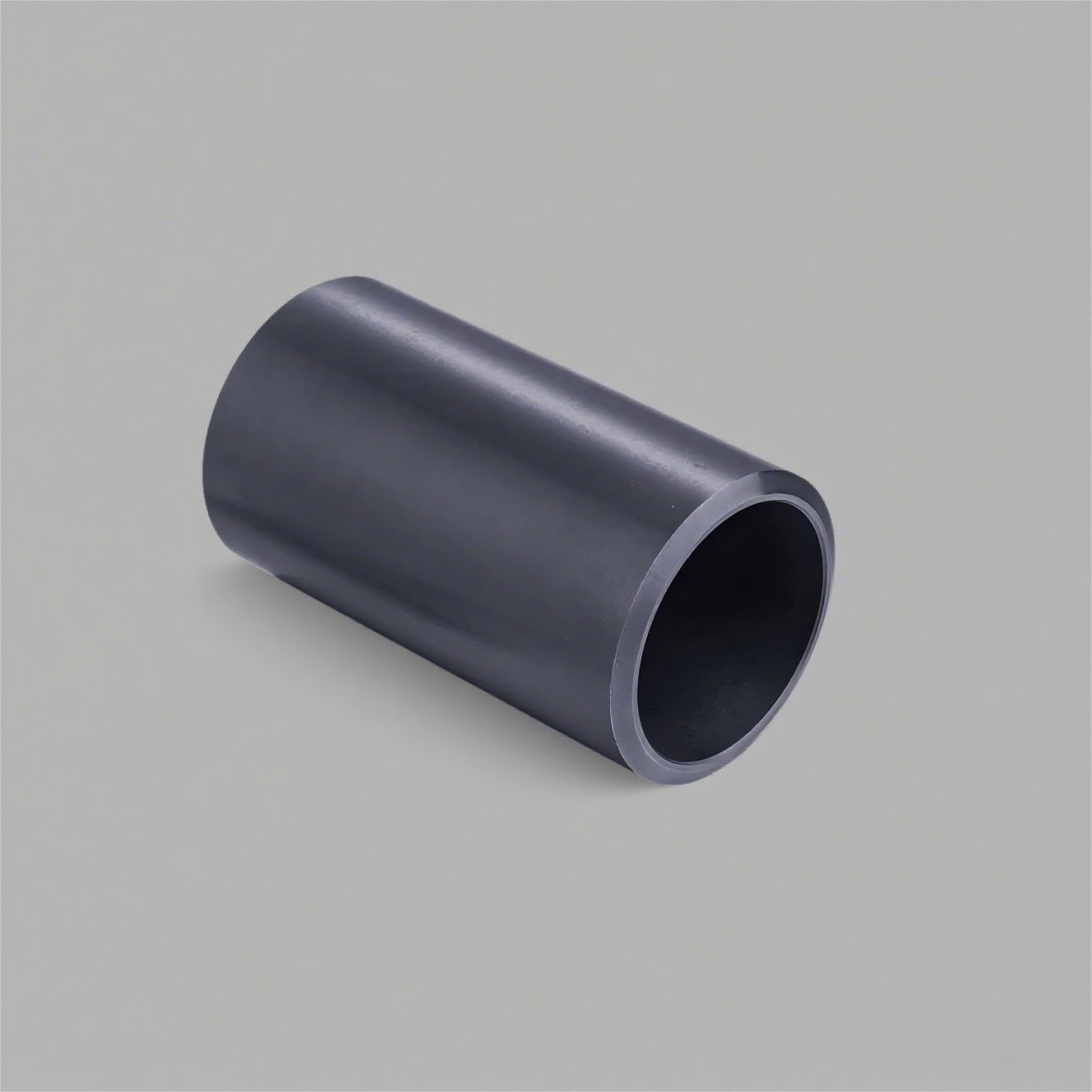

Si3N4 Ceramic Tubes

No.Si3N4 Ceramic Tubes

Si3N4 Ceramic Tubes are inorganic material ceramics that do not shrink during sintering.
Silicon nitride hardness is extremely high, especially hot-pressed silicon nitride, is one of the hardest substances in the world, with high hardness, low density, high temperature resistance and other properties.
Si3N4 has good impact resistance due to its low thermal expansion coefficient and high thermal conductivity.

Description

Si3N4 Ceramic Tubes have a low coefficient of thermal expansion, high thermal conductivity, and excellent thermal shock resistance. we are a professional supplier and manufacturer of high-quality Silicon Nitride Tubes, offering competitive prices and customized solutions to meet specific requirements.

Silicon Nitride (Si3N4) Tube has high strength and impact resistance up to 1200°C. In addition, it has excellent chemical resistance. HM can supply high-precision and low-price Silicon Nitride (Si3N4) Tubes with various specifications for choices.

Silicon Nitride (Si3N4) Material Properties Parameter

Item		Unit	Si3N4
Mechanical Properties	Density	g/cm³	3.2
	Porosity	%	0
	Bending Strength	Mpa	830
	Compressive Strength	Mpa	2500
	Elastic Modulus	Gpa	310
	Poisson's Ratio	/	0.27
	Hardness	kg/mm²	1580
	Fracture Toughness KIC	Mpa·m^1/2	6.1
Thermal Properties	Thermal Conductivity	W/m·k	30
	Coefficient of Thermal Expansion	10^-6/K	3.3
	Maximum Operating Temperature	°C	1200
Electrical Properties	Dielectric Constant	/	8
Electrical Properties	Volume Resistivity	ohm•cm	>10¹⁴

Silicon Nitride (Si3N4) Tube Advantages

Heat Resistance
Silicon nitride tubes have excellent heat resistance and can maintain stable physical and chemical properties at extremely high temperatures, making them suitable for use in high-temperature furnaces, kilns, smelting equipment, and other scenarios.
Corrosion Resistance
Silicon nitride tubes have excellent corrosion resistance. They can be used stably for a long time in harsh environments such as acid and alkali solutions, corrosive gases, and other harsh environments, such as corrosive media processing equipment, chemical laboratory equipment, and so on.
Precision Processing
Silicon nitride tubes can be customized for precision machining to meet customer-specific requirements for size, shape, and aperture to ensure the precision and stability of the equipment.
Wear Resistance
Silicon nitride tubes have excellent abrasion resistance and maintain stable performance under the impact of high-speed fluids or particles, making them suitable for applications such as sandblasting equipment and abrasive conveying systems.

Silicon Nitride (Si3N4) Tube Applications

Electronic and semiconductor industry
Chemical equipment
Aerospace and advanced engineering applications
Metallurgical industry
Automotive industry
