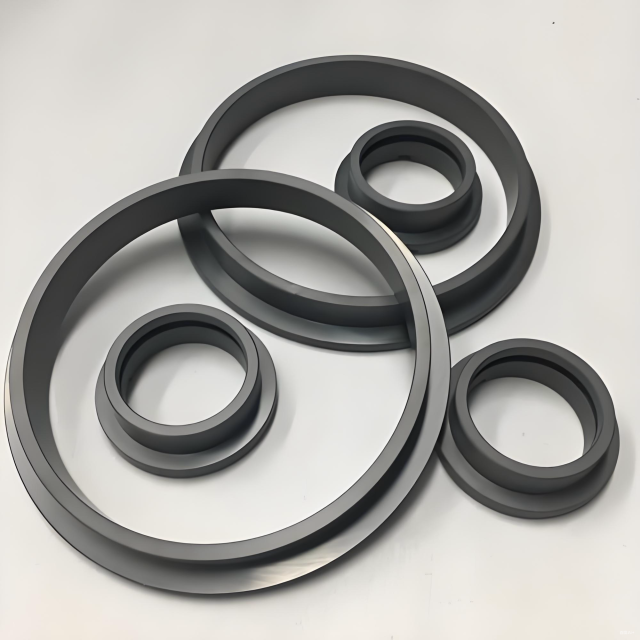

Silicon Carbide Seal Ring (SiC Ring) is a lightweight ceramic product with high strength properties comparable to diamond. It has excellent thermal conductivity, low thermal expansion, and is resistant to corrosion from acids. Silicon carbide is an excellent ceramic material for applications requiring good erosion and abrasive resistance. Consequently, the silicon carbide seal ring is useful in a variety of applications including spray nozzles, shot blast nozzles, and cyclone components
Silicon Carbide Seal Ring (SiC Ring) is a lightweight ceramic product with high strength properties comparable to diamond. It has excellent thermal conductivity, low thermal expansion, and is resistant to corrosion from acids. Silicon carbide is an excellent ceramic material for applications requiring good erosion and abrasive resistance. Consequently, the silicon carbide seal ring is useful in a variety of applications including spray nozzles, shot blast nozzles, and cyclone components.
Silicon carbide is an excellent material for sealing rings and bearings. Silicon carbide seal rings have excellent corrosion resistance, great mechanical strength under high temperatures, and great wear resistance. SAM supplies multiple sizes of silicon carbide rings as well as other SiC parts.
Properties
|
Composition |
SiC |
|
Operating Temperature |
≤1600℃ |
|
HV Hardness (kg/mm) |
2450 |
|
Tensile Strength (MPa) |
250 |
|
Compressive Strength (MPa) |
3050-3350 |
|
Elastic Modulus (GPa) |
430 |
|
Coefficient of Thermal Expansion (1 x 10-6 in/in °C) |
4.4 |
|
Thermal Conductivity (W/mK) |
125 |
|
Poisson’s Ratio |
0.16 |
*Customization Based on Drawings. The above product data are theoretical values. For specific product information, please contact us.
Our products are packaged in customized cartons of various sizes based on the material dimensions. Small items are securely packed in PP boxes, while larger items are placed in custom wooden crates. We ensure strict adherence to packaging customization and the use of appropriate cushioning materials to provide optimal protection during transportation.
