Name: ZTA Ceramic Nozzle
Brand: Changsha Ceram New Material Co. Ltd.-Supplier of Advanced Ceramic, Dia
SKU: ZTA Ceramic Nozzle
Rating: 5 (1 reviews)

Description

Zirconia Toughened Alumina Ceramics (referred to as composite ceramics, ZTA) has the characteristics of corrosion resistance and chemical stability. Alumina has high hardness and the toughness of zirconia is good. The composite ceramics have the properties of both materials, it has higher flexural strength and fracture toughness at room temperature, and zirconia toughened ceramics have excellent wear resistance, high strength, and hardness.

The performance of ZTA ceramics is better than that of 99 alumina ceramics, and the price is much lower than that of zirconia ceramics. The specific ratio of the two materials can be adjusted according to the application. Typically, ZTA contains 10-20% volume of ZrO2 in alumina. Depending on the percentage of content, the properties of the ceramic can be tailored to suit the application in question.

Zirconia Toughened Alumina Properties

Chemical Formula	Zr-Al2O3
Density	4.1-4.38 g/cm^3
Hardness	1750-2100 Knoop
Elasticity	45-49 x 10^6 psi
Flexure Strength	100-145 ksi
Poisson’s Ratio	0.26
Fracture Toughness	5-7 MPa m^1/2
Coefficient of Thermal Expansion	8.0-8.1 x 10^-6 1/C
Thermal Conductivity	20.0-21.0 W/mK
Shock Resistance	325 °C
Maximum Working Temperature	1650 °C

Specifications of Zirconia Toughened Alumina

		Condition	Unit	ZTA
Material		—	—	Al₂O₃/ZrO₂
Color		—	—	White
Density		—	g/cm³	4
Surface Roughness		—	μm	0.2
Reflectivity		0.3-0.4mmt	%	80
Reflectivity		0.8-1.0mmt	%	90
Mechanical	Bending strength	3-point method	MPa	700
	Modulus of Elasticity	–	GPa	310
	Vickers Hardness	–	Gpa	15
	Fracture toughness	IF method	MPa∙m^1/2	3.5
Thermal	Coefficient of thermal expansion	40-400℃	10^–⁶/K	7.1
	Coefficient of thermal expansion	80-400℃	10^–⁶/K	8
	Thermal conductivity	25℃	W/(m∙K)	27
	Thermal conductivity	300℃	W/(m∙K)	16
	Specific heat	25℃	J/(Kg∙K)	720
Electrical	Dielectric constant	1mHZ	–	10.2
	Dielectric loss factor	1MHZ	Tanx10^-4	0.2
	Volume resistivity	25℃	Ω∙cm	>10¹⁴
	Breakdown strength	DC	kV/mm	>15

Zirconia Toughened Alumina Applications:

Where high strength and erosion-resistant material is needed, ZTA ceramics can become the first choice. Industrial components such as valve seals, sleeves, pump pistons, and spraying nozzles are perfectly suited for ZTA.

Other Applications:

-Standoffs

-Insulators

-Probe Bodies

-Bushings

-Fluid Delivery System Components

-Pump Position Sleeves

-Instrument

-Sensor Bulbs

-Impellers

-Analytical instrument Columns

Packing of Zirconia Toughened Alumina Products

Our ZTA products are clearly tagged and labeled externally to ensure efficient identification and quality control. The products are separated by bubble bags for shockproof purposes and finally packed in wooden or carton boxes. Great care is taken to avoid any damage which might be caused during storage or transportation.

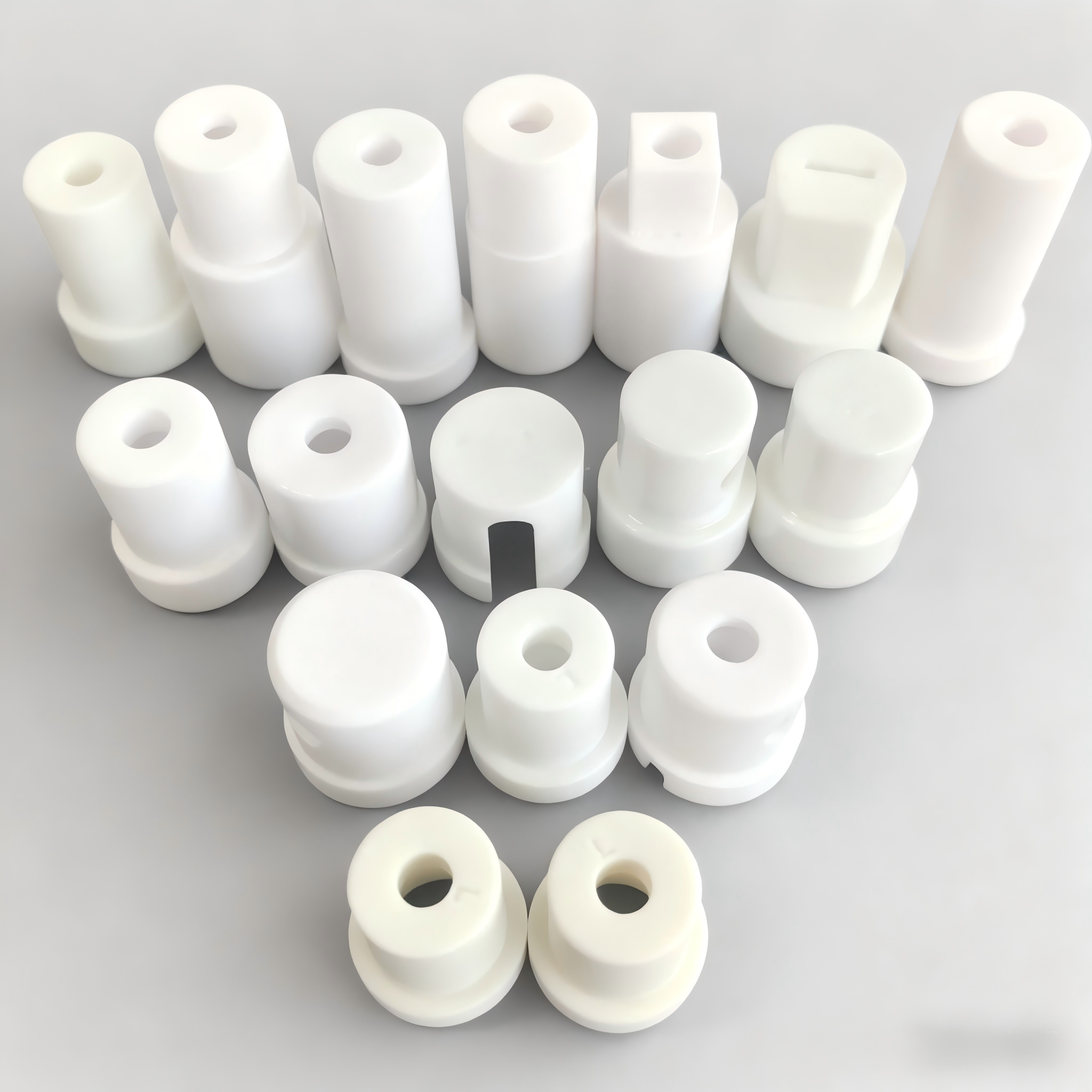

ZTA Ceramic Nozzle
